Definition

---

Define a family of algorithms, encapsulate each one, and make them interchangeable. Strategy lets the algorithm vary independently from clients that use it.

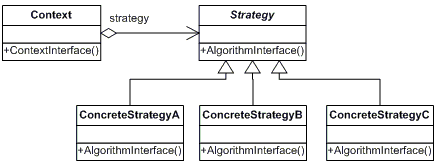

UML class diagram

---

Participants

---

The classes and/or objects participating in this pattern are:

• Strategy - declares an interface common to all supported algorithms. Context uses this interface to call the algorithm defined by a ConcreteStrategy.
• ConcreteStrategy - implements the algorithm using the Strategy interface

Context
is configured with a ConcreteStrategy object

maintains a reference to a Strategy object

may define an interface that lets Strategy access its data.

Sample code in C#

---

This allows clients to dynamically change sorting strategies including Quicksort, Shellsort, and Mergesort.

  /// <summary>
  /// MainApp startup class for Real-World
  /// Strategy Design Pattern.
  /// </summary>
  class MainApp
  {
    /// <summary>
    /// Entry point into console application.
    /// </summary>
    static void Main()
    {
      // Two contexts following different strategies
      SortedList studentRecords = new SortedList();

      studentRecords.Add("Samual");
      studentRecords.Add("Jimmy");
      studentRecords.Add("Sandra");
      studentRecords.Add("Vivek");
      studentRecords.Add("Anna");

      studentRecords.SetSortStrategy(new QuickSort());
      studentRecords.Sort();

      studentRecords.SetSortStrategy(new ShellSort());
      studentRecords.Sort();

      studentRecords.SetSortStrategy(new MergeSort());
      studentRecords.Sort();

      // Wait for user
      Console.ReadKey();
    }
  }


  /// <summary>
  /// The 'Strategy' abstract class
  /// </summary>
  abstract class SortStrategy
  {
    public abstract void Sort(List<string> list);
  }

  /// <summary>
  /// A 'ConcreteStrategy' class
  /// </summary>
  class QuickSort : SortStrategy
  {
    public override void Sort(List<string> list)
    {
      list.Sort(); // Default is Quicksort
      Console.WriteLine("QuickSorted list ");
    }
  }

  /// <summary>
  /// A 'ConcreteStrategy' class
  /// </summary>
  class ShellSort : SortStrategy
  {
    public override void Sort(List<string> list)
    {
      //list.ShellSort(); not-implemented
      Console.WriteLine("ShellSorted list ");
    }
  }

  /// <summary>
  /// A 'ConcreteStrategy' class
  /// </summary>
  class MergeSort : SortStrategy
  {
    public override void Sort(List<string> list)
    {
      //list.MergeSort(); not-implemented
      Console.WriteLine("MergeSorted list ");
    }
  }

  /// <summary>
  /// The 'Context' class
  /// </summary>
  class SortedList
  {
    private List<string> _list = new List<string>();
    private SortStrategy _sortstrategy;

    public void SetSortStrategy(SortStrategy sortstrategy)
    {
      this._sortstrategy = sortstrategy;
    }

    public void Add(string name)
    {
      _list.Add(name);
    }

    public void Sort()
    {
      _sortstrategy.Sort(_list);

      // Iterate over list and display results
      foreach (string name in _list)
      {
        Console.WriteLine(" " + name);
      }
      Console.WriteLine();
    }
  }



---
